Slope Protection Mould Subcategory

Stepped Slope Block Moulds

Factory-direct half-I and I-shaped stepped slope block moulds for river-bank revetment, road embankment and water-conservancy slope protection projects.

Request Quote Ask on WhatsApp Ask on Telegram

Half-I & I-shaped blocksRiver bank revetmentOEM from drawings

I-Shaped Slope Block Mould 46.7 × 34.7 × 10.5 cm

Factory-direct moulds for project slope-block production

River banks, canal slopes, highway embankments, railway side slopes, reservoir slopes and erosion-control sections that use stepped or I-shaped concrete blocks.

Zhihua supports catalogue matching and OEM production from drawings or sample photos. Send finished block size, installation environment and expected quantity for faster quotation.

ApplicationsRiver banks, canal slopes, highway embankments, railway side slopes, reservoir slopes and erosion-control sections that use stepped or I-shaped concrete blocks.

Product scopeHalf-I slope block moulds, I-shaped slope protection moulds, stepped revetment block moulds and project-size concrete slope block moulds.

CustomizationBlock length, width, thickness, bridge/web width, interlock direction, surface texture, logo/letters and project-specific dimensions.

Buyer supportDrawing review, sample-photo matching, mixed-SKU packing, export quotation and OEM logo/letter pattern support

Representative Stepped Slope Block Moulds

Complete product-card images selected from qualified slope-protection materials. Dimensions below follow the source-card OCR text.

Half-I Stepped Slope Blocks

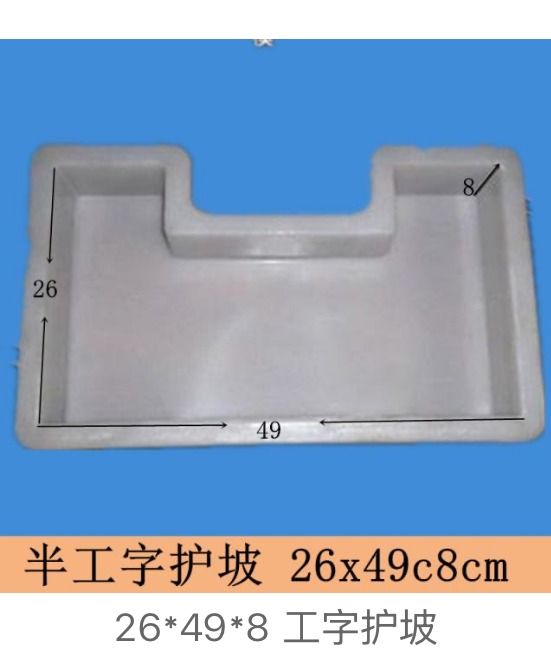

Half-I Stepped Slope Block Mould 26 × 49 × 8 cm

Block size 26 × 49 × 8 cm

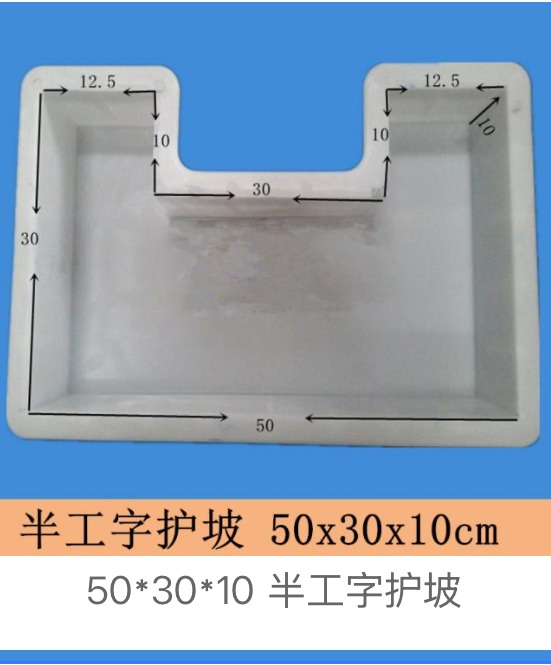

Half-I Stepped Slope Block Mould 50 × 30 × 10 cm

Block size 50 × 30 × 10 cm

I-Shaped (Dogbone) Slope Blocks

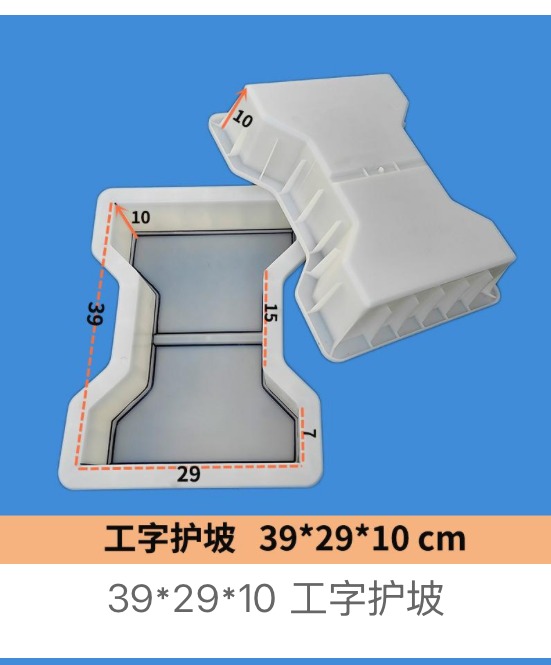

I-Shaped Slope Block Mould 39 × 29 × 10 cm

Block size 39 × 29 × 10 cm

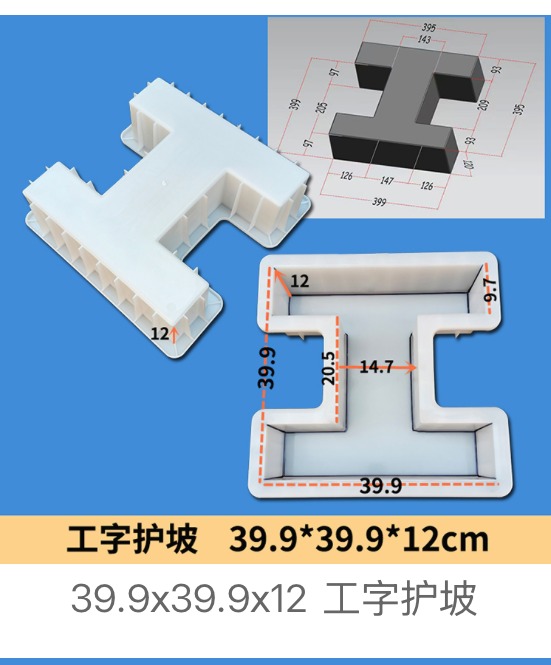

I-Shaped Slope Block Mould 39.9 × 39.9 × 12 cm

Block size 39.9 × 39.9 × 12 cm

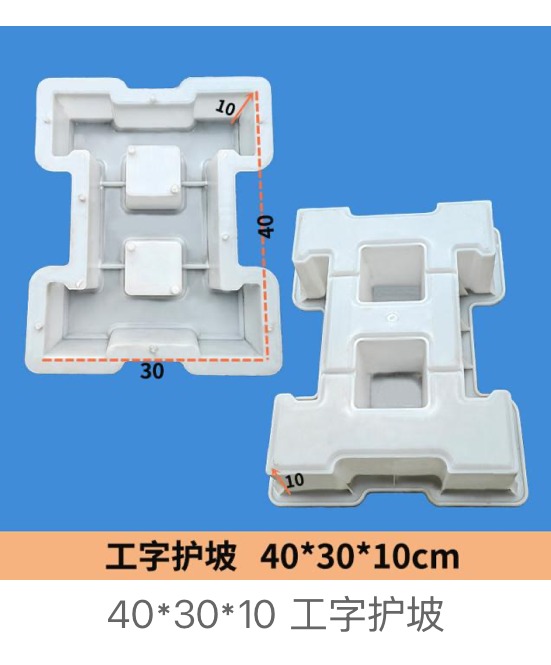

I-Shaped Slope Block Mould 40 × 30 × 10 cm

Block size 40 × 30 × 10 cm

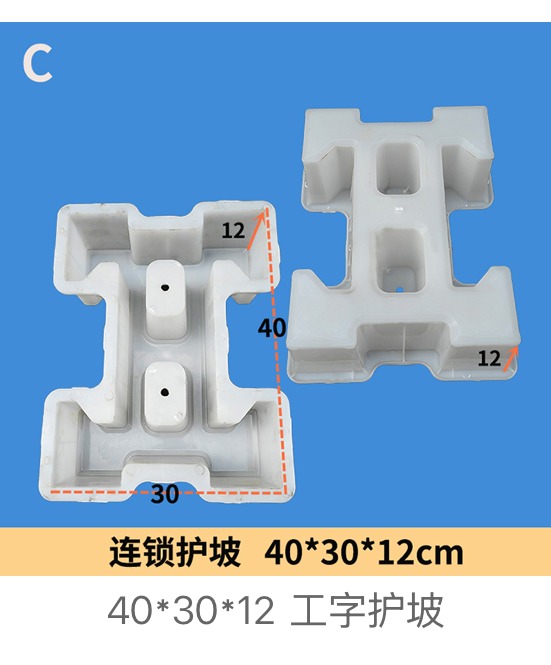

I-Shaped Interlocking Slope Block Mould 40 × 30 × 12 cm

Block size 40 × 30 × 12 cm · interlocking tongue-and-groove edges · 2 grass-planting voids

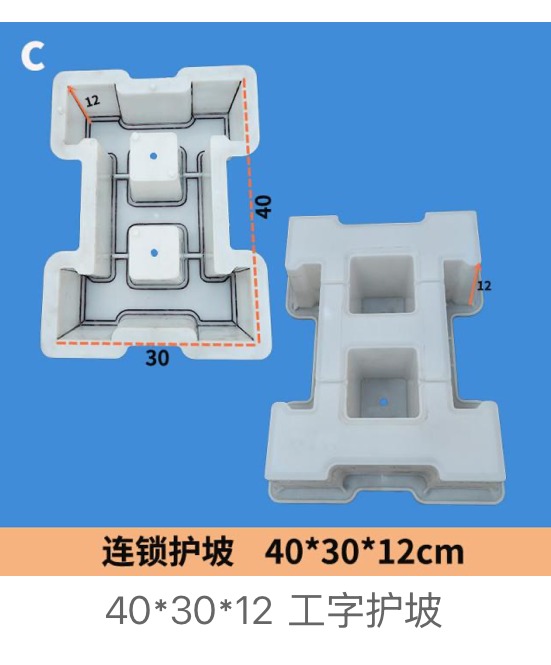

I-Shaped Interlocking Slope Block Mould 40 × 30 × 12 cm

Block size 40 × 30 × 12 cm · interlocking tongue-and-groove edges · 2 grass-planting voids

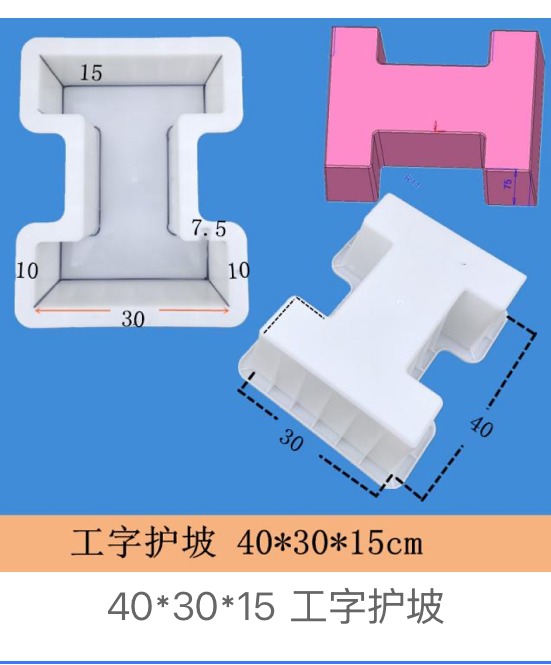

I-Shaped Slope Block Mould 40 × 30 × 15 cm

Block size 40 × 30 × 15 cm

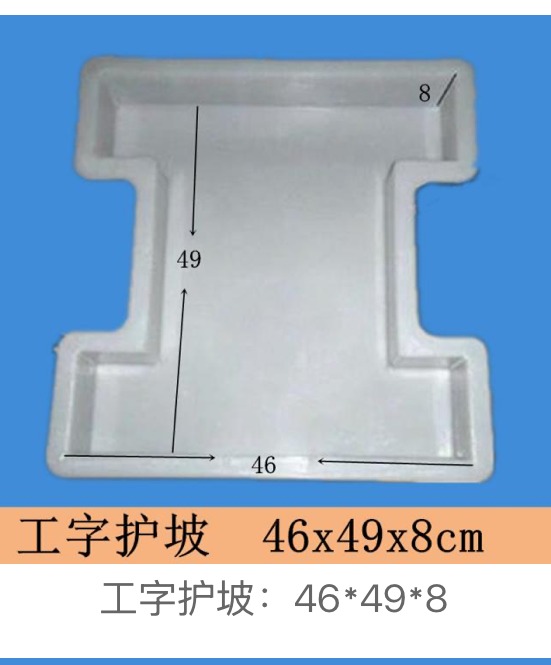

I-Shaped Slope Block Mould 46 × 49 × 8 cm

Block size 46 × 49 × 8 cm

I-Shaped Slope Block Mould 46.7 × 34.7 × 10.5 cm

Block size 46.7 × 34.7 × 10.5 cm

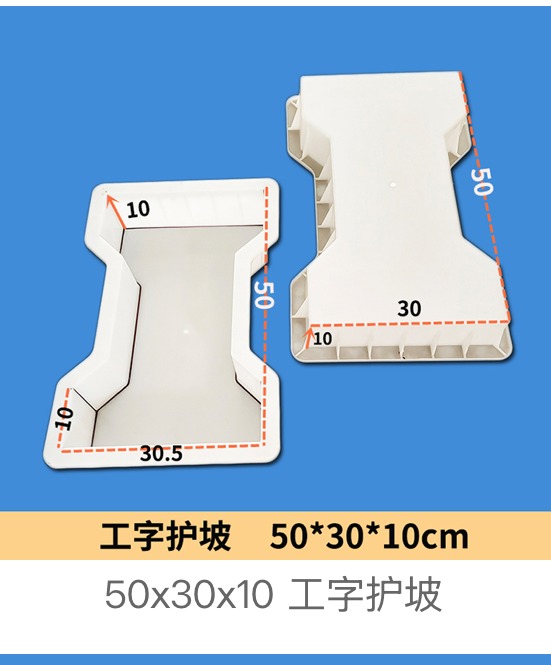

I-Shaped Slope Block Mould 50 × 30 × 10 cm

Block size 50 × 30 × 10 cm

What to send for a fast quote

Slope protection orders depend on finished block shape, thickness, interlocking method and project installation environment.

Finished block length, width, thickness and opening/interlock size
Block type and whether it is solid, half-I, I-shaped, hollow, dovetail or interlocking
Application: river bank, canal, highway side slope, railway embankment, reservoir or drainage project
Logo, letters, anti-slip texture or surface pattern requirements
Quantity, destination country and mixed-size packing requirements

Need stepped or I-shaped slope block moulds?

Send your drawing, size or sample photo. We can review catalogue options or OEM mould feasibility.

Send Inquiry WhatsApp Now Telegram Now

Stepped & I-Shaped Slope Block Mould Buyer Guide

I-shaped (also called dogbone or H-shaped) slope blocks lock into each other along the slope by shape alone, which is why they are specified where a plain rectangular block would slide. This page holds 11 sizes from 26 to 50 cm long.

I-shaped vs half-I: what actually differs

Full I-shaped block: waisted on both sides, so it keys into neighbours on all four edges. Used across the main slope field.
Half-I block: waisted on one side and straight on the other. It is the edge and closing piece — you order it alongside the full block, not instead of it.
Interlocking I-shaped block: I-profile plus tongue-and-groove edges and open grass-planting voids, for slopes that need both mechanical keying and vegetation.

Three things buyers get wrong

Ordering only the full block. Every slope has edges. If you order 100% full I-blocks you will be cutting them on site to close the boundary. Work out the half-I quantity from the slope perimeter at drawing stage.
Reading the quoted size as the finished paved module. An I-shaped block interlocks, so the laid centre-to-centre spacing is smaller than the block's overall length. Ask for the laying module if you are calculating blocks per m².
Assuming same face size means interchangeable. This page has 40 × 30 cm blocks at 10, 12 and 15 cm thick, and two 50 × 30 × 10 cm blocks of different profile (I and half-I). Same footprint, different mould, different product.

Position on slope	Block to use	Key parameters
Main slope field	Full I-shaped block	Face size, thickness, waist width
Slope edges & closing course	Half-I block	Must match the field block's size and thickness
Slope needing vegetation	Interlocking I-shaped block with voids	Void count and open area
Higher flow / steeper slope	Thicker section (15 cm)	Thickness per structural design

Stepped Slope Block Moulds FAQ

What is a stepped slope block mould used for?

It is used to precast I-shaped or half-I concrete blocks for slope protection, river-bank revetment and embankment erosion control.

Can you make the mould from our drawing?

Yes. Send the finished block drawing, size, thickness and site application; we can review catalogue matching or OEM mould feasibility.

Can the block size be customized?

Yes. Length, width, thickness, interlocking details and surface patterns can be customized when the mould structure allows.
